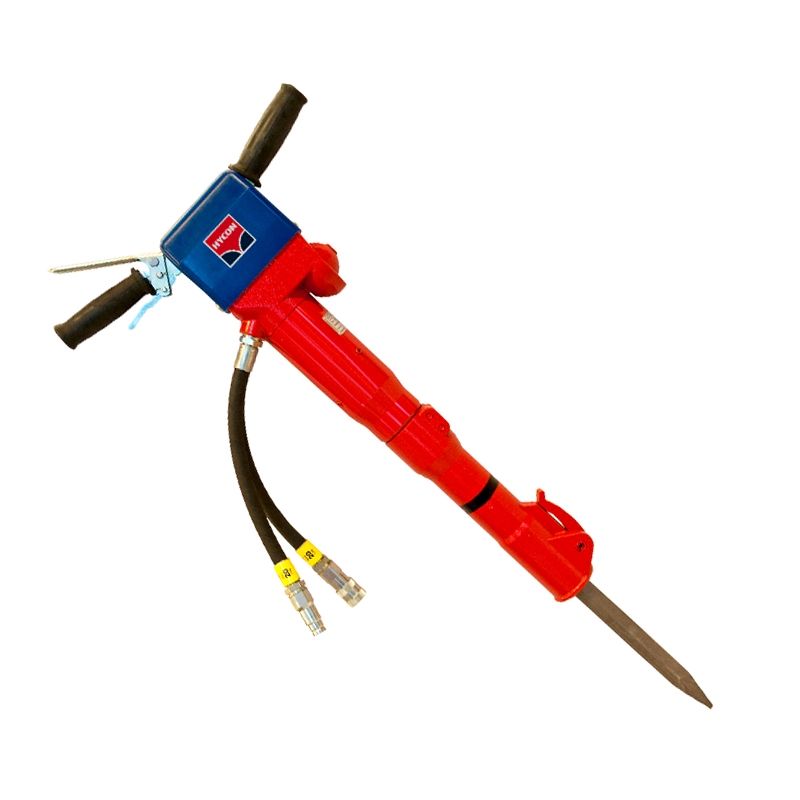

HYCON HH27 is exceptionally strong in coping with all jobs requiring extreme power (75 % higher performance than the HH20). It is designed for breaking reinforced concrete, asphalt, ramming jobs, etc. Best power-to-weight ratio.

HH27 comes as standard with the HYCON vibration-reduced handle and is primarily used by contractors, armies, on railroads, etc.

The standard tool size is hex 32 x 160 mm.

The breaker can be connected to the HYCON power packs and other hydraulic power sources. It is available both as 20 and 30-lpm types.

• BREAKER WEIGHT CLASS: 70 LBS
• UNDERWATER USE Yes
• BREAKER TOOL SIZE: 1-1/8" HEX x 6" (Blue)
• IMPACTS PER MIN: 1,260 IPM
• MAX. PRESSURE: 2,300 PSI / 160 BAR
• WORKING PRESSURE: 130 BAR
• OIL FLOW REQUIRED: 8 GPM / 20/30 LPM
• UNBOXED WEIGHT: 60 LBS
• MAXIMUM DEPTH: 100 ft
• BLOW FREQUENCY: 1260 Hz
• BLOW ENERGY: 105 JOULE
• SOUND POWER LEVEL LWA: 110 DB
• VIBRATION LEVEL, 3 AXIS: 10.7 M/S2
• MADE IN DENMARK
• CE APPROVAL
