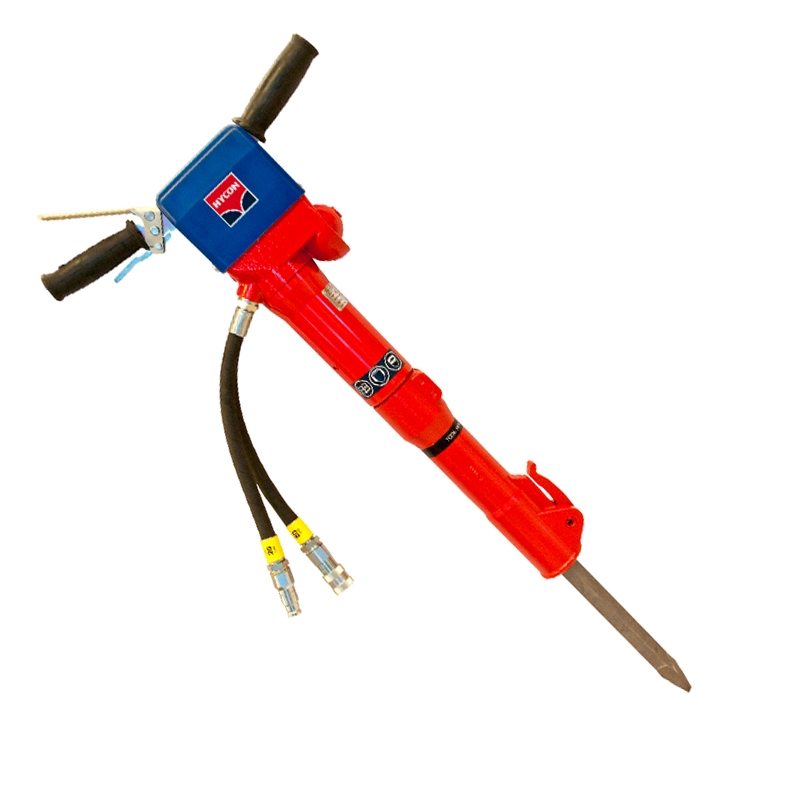

HYCON HH25 is compact and delivers very high performance in relation to its weight. It is designed for tough jobs of breaking reinforced concrete, asphalt, frozen ground, etc.
The HYCON vibration-reduced handle is standard with the HH25, available in 20 and 30-lpm types.
It is mainly used by contractors, armies, asphalt companies, supply companies, rentals, etc. The standard tool size is hex 32 x 160 mm.
The breaker can connect the HPP series and other hydraulic power sources. Different tool sizes are available on request.
- BREAKER WEIGHT CLASS: 50 LBS
- UNDERWATER USE Yes
- BREAKER TOOL SIZE: 1-1/8" HEX x 6" (Blue)
- IMPACTS PER MIN: 1,380 IPM
- MAX. PRESSURE: 2,300 PSI / 160 BAR
- WORKING PRESSURE: 120 BAR
- OIL FLOW REQUIRED: 8 GPM / 20/30 LPM
- UNBOXED WEIGHT: 57 LBS
- MAXIMUM DEPTH: 100 ft
- BLOW FREQUENCY: 1380 Hz
- BLOW ENERGY: 85/95 JOULE
- SOUND POWER LEVEL LWA: 108 DB
- VIBRATION LEVEL, 3 AXIS: 9.4 M/S2
- MADE IN DENMARK
- CE APPROVAL
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Weight 57 lbs / 23.4 kg
- Oil Flow 8 GPM / 20 lpm
- Working Pressure 1750 Psi / 130 Bar
- Max Pressure Psi 2300 / 160 Bar
- Blow Frequency 1,380 Bpm
- Noise level 1 m LPAdB 96
- Noise level LWAdB 108
- Vibration level (3 axis) m/s² 9.4
- Tool size 1-1/8" HEX x 6" (Blue)
- 1 Year Warranty
- Parts And Servive Avalable in USA
|
|
|
|
|
|
|
