UAM Tec designed and manufactured the BarrelEye Dive to meet the needs of commercial divers and diving companies. Working closely with industry experts, the team at UAM Tec sought to create a versatile and reliable camera system that would deliver crisp, high-resolution images and video footage, as well as real-time depth and temperature readings. The goal was to provide a user-friendly, plug-and-play solution that would be ready to use out of the box, cater to an array of applications, and make it effortless for divers to capture high-quality footage and data in a variety of underwater environments.

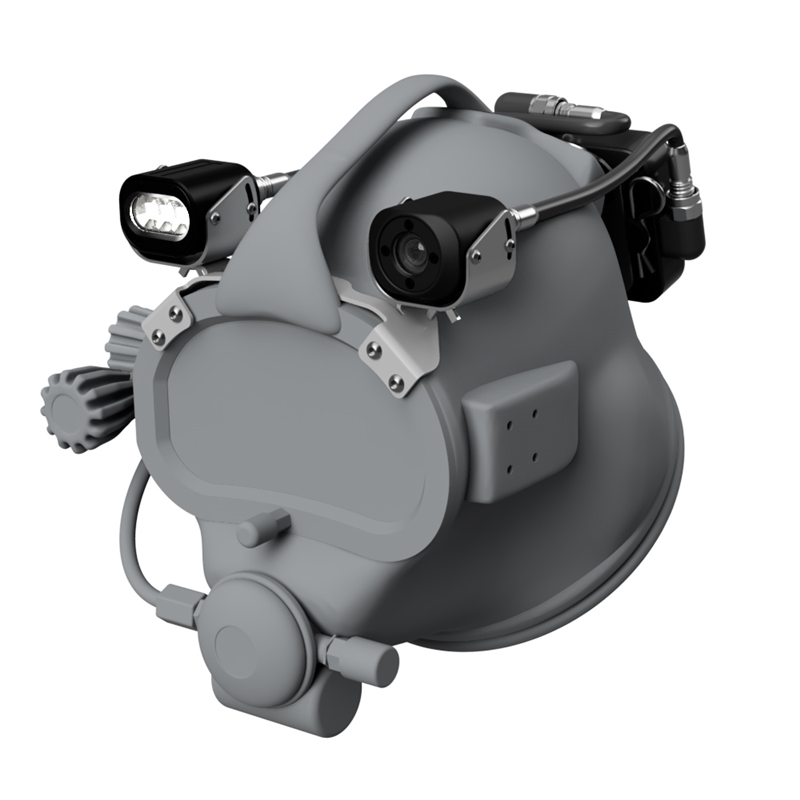

The BarrelEye Dive Top Mount is a weight balanced camera and light system designed for dive comfort and capturing Ultra-high-definition video and imagery. The high intensity light module allows illumination in even the lowest visibility environments.
Quick & Easy Installation
|
The BarrelEye Digital Video/Audio system is designed with ease of assembly in mind.

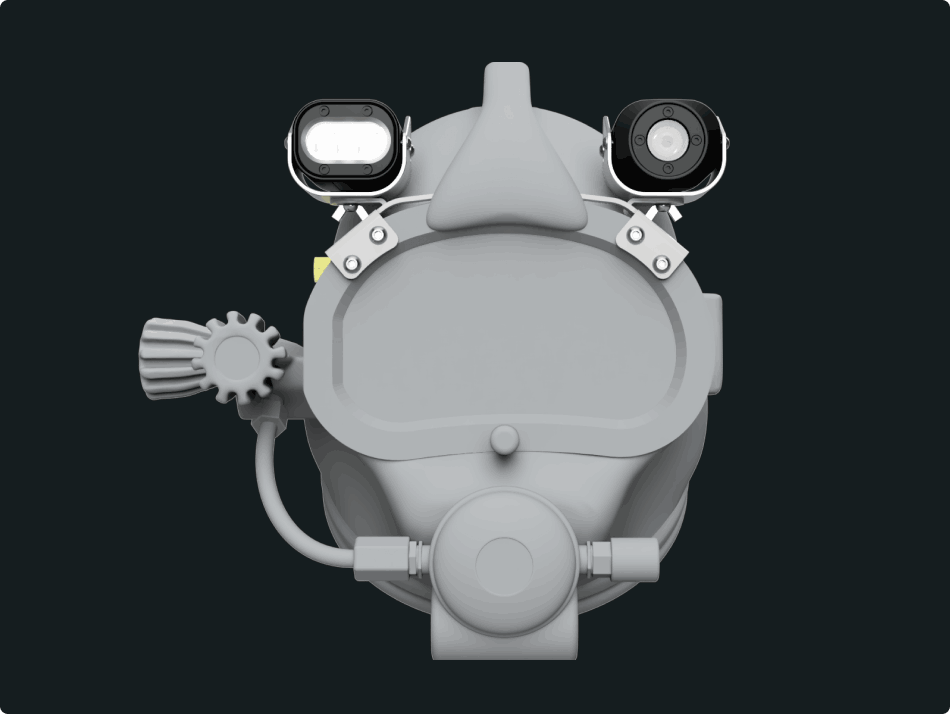

The system is specifically built to fit widely used Kirby Morgan diving helmets and can be mounted in just 5 minutes.

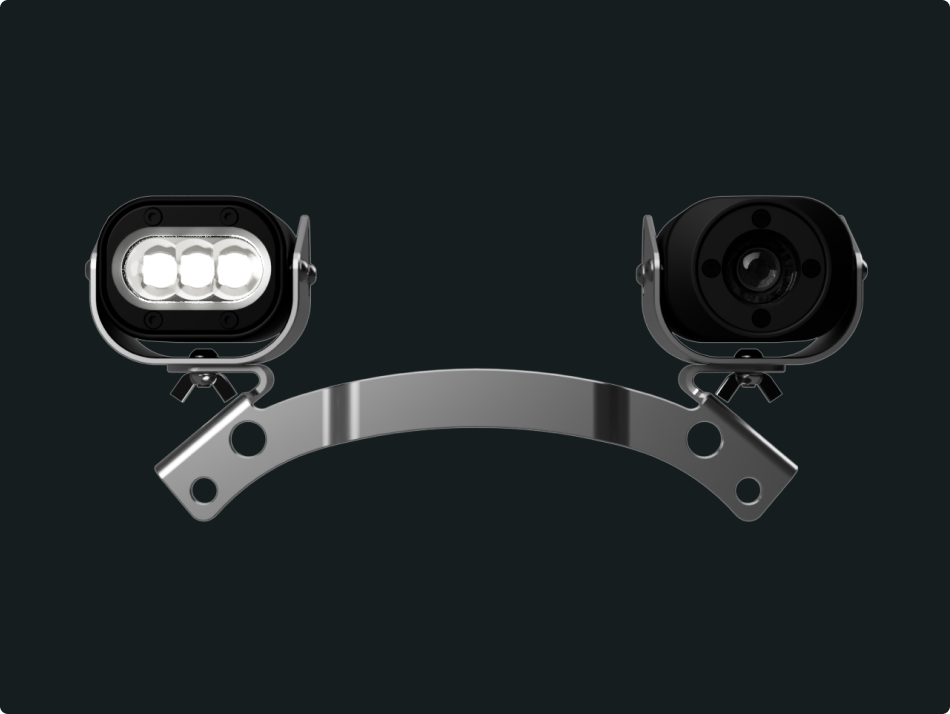

The system also comes with adjustment screws that allow for easy pan and tilt maneuverability, ensuring that the camera is aligned directly with
the diver's line of sight.
|
High quality visuals designed with diver comfort in mind
|
Ergonomic bracket designs can be configured to fit any dive helmet.
The lightweight and balanced design ensure high quality visual capture without compromising diver comfort.
|
Experience sharp, clear footage with BarrelEye's ultra HD camera
|
Capture stunning footage no matter the lighting conditions with BarrelEye's ultra HD camera and its advanced auto and manual focusing options.
The backlit sensor ensures superior performance even in the dimmest environments.
|
Illuminating the unseen with BarrelEye's integrated light
|

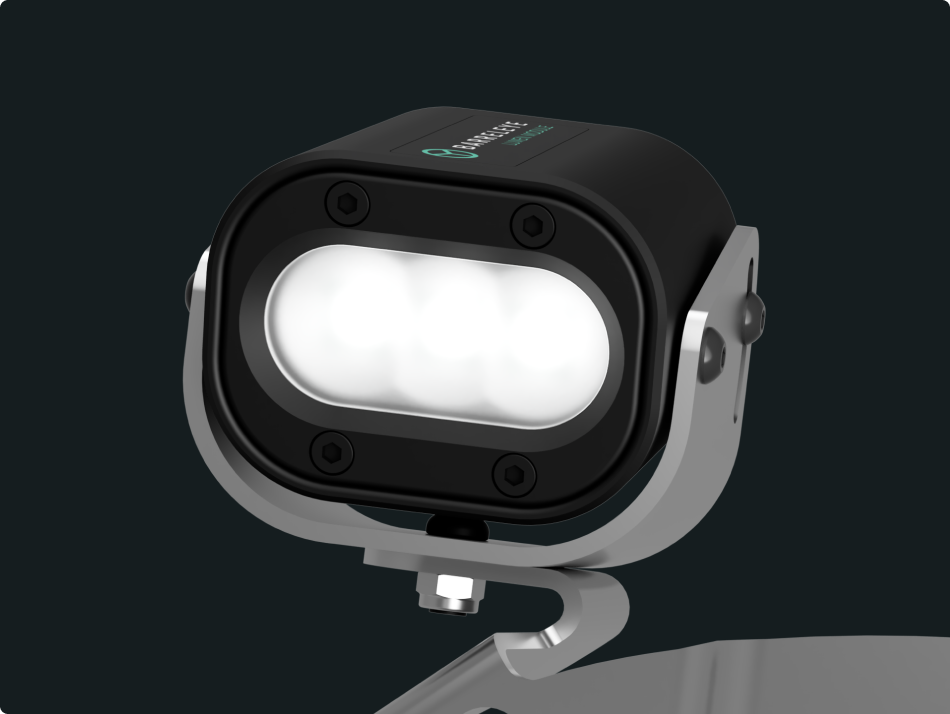

The Top Mount light module packs a powerful punch. Its high luminosity,
cool white LED is aligned with the camera to ensure your subject matter is illuminated, even at greater depths where light is scarce. This
feature allows for clear and detailed footage even in low light environments, making it perfect for a variety of different applications.
|
Seamless monitoring of depth, pressure and temperature
|
The integrated high resolution pressure sensor on the BarrelEye Video/Audio system allows for live data streams of depth, temperature
and pressure readings to be monitored and embedded into your video recordings.
This feature allows for precise measurements and accurate
readings, providing valuable information for dive operations and monitoring the underwater environment.
|
Built to withstand harsh environments
BarrelEye's precision-engineered and rugged hard anodized marine-grade aluminum housing ensures that the camera and light system can withstand the toughest underwater conditions.
The Top Mount systems versatile bracket designs ensure compatibility with any dive helmet. This model is compatible with the following Kirby Morgan helmets:
- KM 37 SS
- KM 77
- KM 97
- KM Diamond
***The manufacturer recommends connecting to a laptop with specifications: Intel i7 Processor or better, Geforce RTX 3060 Video Card or better, 16 Gb of RAM or more.
- Dimensions:
- Camera Dimensions: 66mm x 60mm x 46mm (2.6in x 2.4in x 1.85in)
- Light Dimensions: 66mm x 60mm x 46mm (2.6in x 2.4in x 1.85in)
- Splitter Module: 154mm x 120mm x 47mm (6.06in x 4.72in x 1.85in)
- BE Control Module: 140mm x 140mm x 43mm (5.51in x 5.51in x 1.69in)
- Ultra HD Camera
- 8.3 mega pixel resolution
- Auto and manual focus (via the included software)
- Resolution: 3840 x 2160 (Configurable to 1920 x 1080 resolution via the included software)
- Camera Weight: 295g (In Water)
- Lighting & Sensors
- 3 x 1080 Lumen LED - Adjustable in increments of 5% up to 100%
- Light Weight: 280g (In Water)
- Pressure Sensor - Available in bar, psi and kPa
- Depth rating - Available in meters, feet
- Temperature Sensor - Available in Celsius, Fahrenheit
- Neutrally buoyant Cable
- Available in 30 to 200 Meter Lengths (100 to 650 Feet)
- Optional:
- Audio Cable Bypass through the single umbilical
- Buoyant Configuration (mainly used in areas such as water tank cleaning)
- Software
- Capture App Software is included
- Plug and play via USB
- Built in Image Filtering
- Easy configuration options within the Settings Menu
- GPS (if added during purchase)
- Microphone Settings (easy access to diver communication for the recording)
- Audio noise filter to allow clear communication between diver & supervisor
- Sensor conversions for worldwide compatibility
- Date and Time configuration options
- Multi Language selection
- Can be per-configured if a laptop is ordered from us with your BarrelEye Dive unit
- Additional Information
- Machined housings made within maritime specifications
- Hard anodized
- Waterproof to 300 meters (984 feet)
- Optional Items
- Audio Cable (built in the tether)
- Vessel Case
- Certified Worldwide
- FCC, RCM and CE Certifications
- Further information available upon request
220L Shipping Box
Barreleye Dive 4K Ultra HD Camera
Barreleye Dive 3000 Lumen Adjustable LED Light
Digital Comms set
Fiber optic tether
Brackets
Splitter/Vessel Modules
Carry Case
Barreleye Capture AP Software (Microsoft OS Only) & Maintenance - 3 Year subscription
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- 1 year Limited Warranty
- 4K Ultra HD Video Resolution
- 8.3 Megapixel UHD Camera
- 3000 Lumen Adjustable LED Light
- Depth, Pressure & Temperature Sensor Feeds
- Depth Rating: 300M (984ft)
- Natural buoyant fiber optic tether with Kevlar reinforcement - Rated breaking load 1100 lbs / 500 kg
- Buoyant fiber optic tether available per request (extra charge)
- Tether Length - up to 500M (1640ft)
- For Analog audio:
- Analog pass-through for diver to supervisor communication
- Analog audio is sampled at 44100 kbps and overlaid onto video recording.’
- For Digital audio:
- Analog to digital audio sampling of diver/supervisor communication, at a sample rate of 44100kbps
- Real-time audio filtering can be implemented to assist in providing clearer audio communication
- For Digital with Analog Backup (in development):
- Analog to digital audio sampling of diver/supervisor communication, at a sample rate of 44100 kbps
- Real-time audio filtering can be implemented to assist in providing clearer audio communication
- Higher volume gains available alongside audio filtering, to improve clarity of communications
- Fallback to analog audio pass-through when power or communication is lost to the surface
|
|
|
|
|
|
|
