The BarrelEye PTZ camera system can equip almost any ROV with live ultra-high definition visuals. The PTZ camera with 12x digital zoom gives the operator superior vision for seamless navigation and continuous capture of the operation.
The Advanced auto/manual focusing options coupled with dual lighting modules provide sharp, clear imagery in the most challenging conditions.
Engineered for easy integration with underwater cleaning ROVs straight out of the box, but can be catered to fit unique applications.

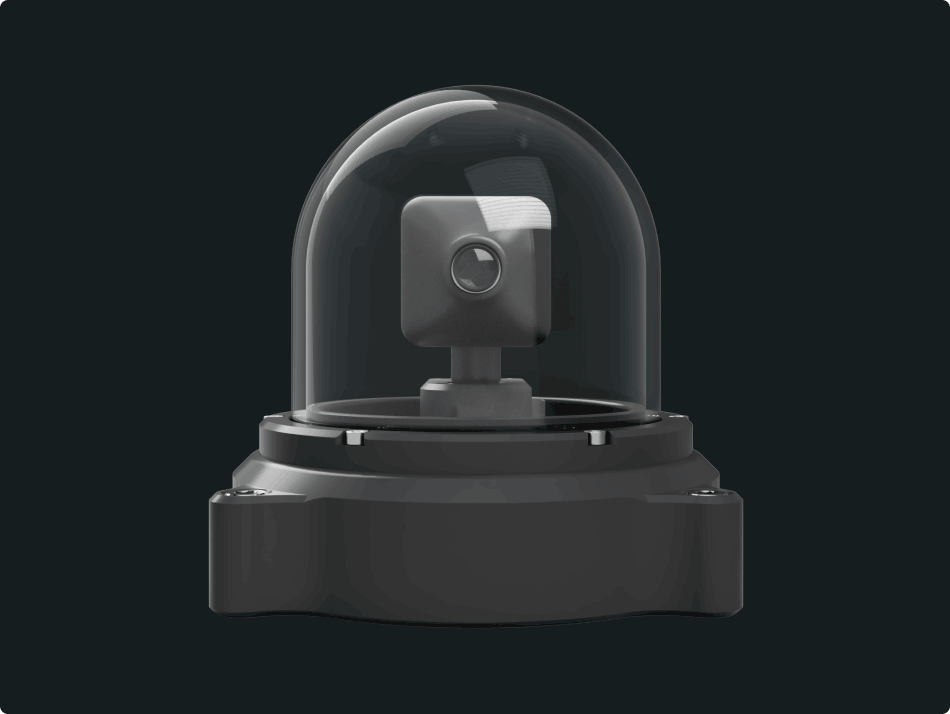

Experience sharp, clear footage with the Ultra HD PTZ Camera
|
Capture the full environment in Ultra High Definition from the ROV platform with the pan, tilt, zoom capabilities of UAM Tec's ROV-mountable camera system
|
Explore the depths in unparalleled clarity with the ROV-mounted camera system
|
Delivering Ultra High Definition visuals coupled with precision control, capturing breathtaking detail every dive. Integrated light modules illuminate the most challenging environments.
|

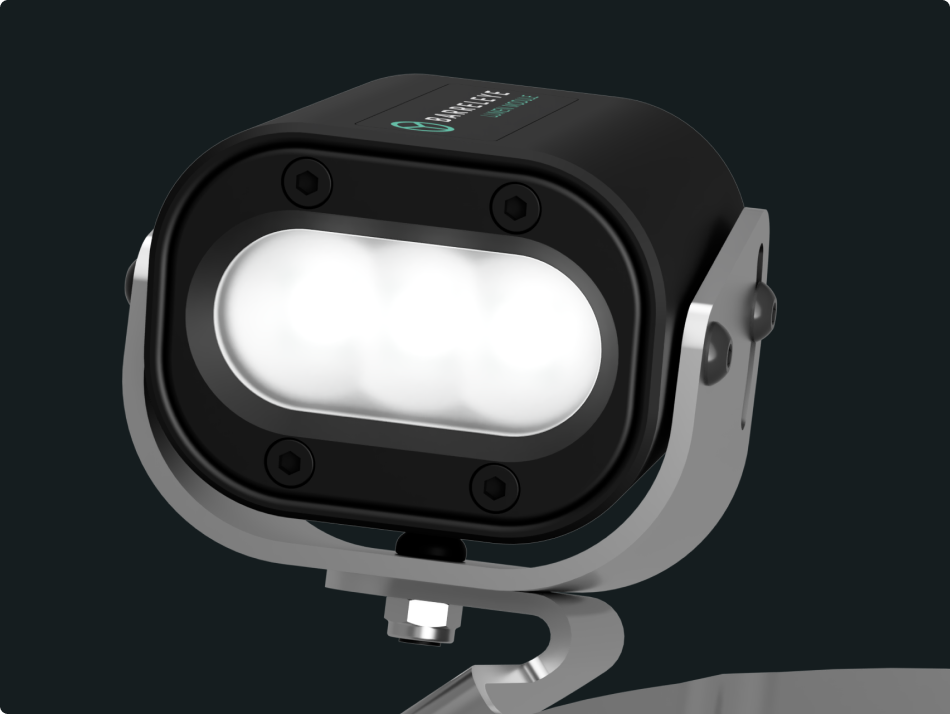

Illuminating the unseen with a high intensity light module
|
The PTZ light module packs a powerful punch. It's high luminosity, cool white LED ensures your subject matter is illuminated, even at greater depths where light is scarce. This feature allows for clear and detailed footage even in low light environments, making it perfect for a variety of different applications.
|
The PTZ camera system is versatile and is compatible with most ROV's that are currently on the market.
***The manufacturer recommends connecting to a laptop with specifications: Intel i7 Processor or better, Geforce RTX 3060 Video Card or better, 16 Gb of RAM or more.
- Dimensions:
- PTZ Camera Module: 170mm x 180mm x 170mm (6.7in x 6.7in x 7.1in)
- Lumen Modules: 66mm x 60mm x 46mm (2.6in x 2.4in x 1.85in)
- Splitter Module: 154mm x 120mm x 47mm (6.06in x 4.72in x 1.85in)
- BE Control Module: 140mm x 140mm x 43mm (5.51in x 5.51in x 1.69in)
- Ultra HD Camera
- 8.3 mega pixel resolution
- 0-360 Degree Pan Capability
- 0-90 Degree Tilt Capability
- Digital zoom up to 12x
- Auto and manual focus (via the included software)
- Resolution: 3840 x 2160 (Configurable to 1920 x 1080 resolution via the included software)
- Lighting & Sensors
- Dual Lumen Modules: Up to 6000 lumens output - Adjustable in increments of 5% up to 100%
- Pressure Sensor - Available in bar, psi and kPa
- Depth rating - Available in meters, feet
- Temperature Sensor - Available in Celsius, Fahrenheit
- Neutrally buoyant Cable
- Available in 30 to 500 Meter Lengths (100 to 1640 Feet)
- Software
- Capture App Software is included
- Plug and play via USB
- Built in Image Filtering
- Easy configuration options within the Settings Menu
- GPS (if added during purchase)
- Audio noise filter to allow clear communication between diver & supervisor
- Sensor conversions for worldwide compatibility
- Date and Time configuration options
- Multi Language selection
- Can be per-configured if a laptop is ordered from us with your BarrelEye Dive unit
- Additional Information
- Optional - 170 degree wide angle lens for greater FOV
- Machined housings made within maritime specifications
- Hard anodized
- Waterproof to 100 meters (328 feet)
- Optional Items
- Audio Cable (built in the tether)
- Vessel Case
- Certified Worldwide
- FCC, RCM and CE Certifications
- Further information available upon request
220L Shipping Box
Barreleye Dive 4K Ultra HD Camera with 170ยบ lens
2x Barreleye Dive 3000 Lumen Adjustable LED Light
Fiber optic tether
All connections and accessories for Barreleye
Vessel side control box
Internal electronic components
Carry Case
Barreleye Capture AP Software (Microsoft OS Only) & Maintenance - 3 Year subscription
|
